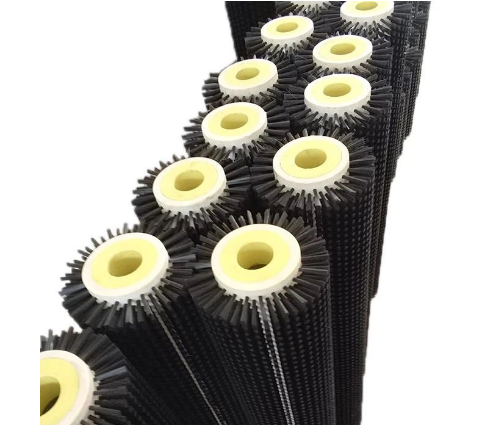

Best Cylinder Brush Materials for Industry

The best Cylinder Brush material depends on your surface, debris load, and environment. Use nylon or PBT for sensitive cleaning, abrasive nylon for controlled deburring, and stainless or carbon wire for heavy rust or scale. Then tune trim length and fill density for stiffness, and choose straight, helical, chevron, or segmented fills to manage debris and heat at line speed.

A fast checklist to get 80% of specs right

• Surface sensitivity and debris: glass/electronics need smooth contact; scale and burrs require aggressive fibers

• Filament family: nylon/PBT/PP/horsehair/PEEK for cleaning; abrasive nylon or steel/brass wire for cutting

• Environment: wet/dry, temperature, chemicals, and ESD or food-grade needs

• Pattern: straight for even polishing; helical for smoother running; chevron for wide sheets; segmented for cooling and quick swaps

• Size: OD/ID/face width that fit your machine; choose custom Cylinder Brush sizes and trim length for stability

• Operating window: tip speed, pressure, and dwell; avoid buckling filaments

• Validation: sample on your line, then refine trim, density, grit, or helix direction




Understanding Cylinder Brush Hair Without the Jargon

Cylinder Brush hair, often called filaments or brush fibers, is the heart of the tool. It’s the material that touches your part, flexes at contact, wipes or cuts debris, and springs back to shape. The right choice gives you clean parts and predictable finishes; the wrong one gives you streaks, heat, and a process that won’t stay in control.

Three levers translate directly to results on your line:

• Stiffness: Controlled by filament material, diameter, and trim length. Shorter trims and thicker filaments act stiffer and more aggressive; longer trims conform better.

• Density: The number of filaments per area. High density boosts contact and cleaning power but can trap debris and heat; lower density sheds debris and runs cooler.

• Pattern: How fibers are arranged around the core (straight, helical, chevron, segmented). Pattern decides how contact starts, where debris goes, and how quietly your brush runs.

In simple terms, if you need gentle cleaning on a coated panel, pick a soft material with short, consistent trim and manage debris with a light helix. If you need a Cylinder Wire Brush for burrs or scale, use short trims for stability, and a helical or chevron fill to throw chips away from the work.

Material Playbook: What to Use and Why

This section is your cylinder brush materials comparison in plain words. It maps common filament families to outcomes you can count on, along with long-tail scenarios buyers search for when they’re finalizing specs.

Nylon and Abrasive Nylon

Nylon is the everyday choice for cleaning and light finishing across plastics, wood, coated metals, and packaging films. It is durable and elastic, which means it bends at contact, wipes well, and springs back instead of taking a permanent set. Nylon also forms the base for abrasive nylon: filaments with grit embedded in them (such as silicon carbide or aluminum oxide) for controlled cutting.

Use nylon when:

• You need a forgiving wipe on painted, anodized, or polymer-coated parts

• You want a cylinder brush for conveyor cleaning that removes crumbs, labels, and fibers reliably

• You prefer a long-lived brush for mixed SKUs without frequent swaps

Use abrasive nylon when:

• You need an abrasive nylon cylinder brush for deburring thin burrs, laser slag, or to radius sheet edges consistently

• You want to smooth without the gouge marks that can appear with wire

• You need a repeatable finish (for example before coating) without deep scratches




Where nylon struggles: high heat or strong solvents can soften it. If you need a high-temperature cylinder brush material or heavy chemical resistance, PEEK or wire might be better. If you’re deciding on nylon cylinder brush vs steel wire for scale removal, wire wins for speed, while abrasive nylon wins for finishing quality.

Catalog examples to benchmark:

• Nylon Brush Wheel for general cleaning and dust removal

• Abrasive Wire Cylinder Brush for cutting and finishing blended in a single pass (wire + abrasive options)

• Transport Belt Cleaning Brush Roller for belts and rollers where nylon excells




PBT vs PP for Wet Lines and Food-Grade Needs

PBT (a polyester) keeps its stiffness in wet environments better than nylon. That consistency makes it a top choice for glass and electronics where even pressure matters, and for lines that cycle between wet and dry. A PBT cylinder brush for glass cleaning with short trim and high density is a classic, trusted build.

PP (polypropylene) is economical, resists many chemicals, and shrugs off water. It’s a solid pick for food-grade cylinder brush materials and fruit or vegetable washing where gentle contact matters more than heat resistance or extreme durability. A longer trim at lower density gives a cushion that protects delicate skins.

Where they fit:

• PBT cylinder brush for glass cleaning and display panels: stable, low-scratch contact at controlled speed

• PP for washdown lines and produce: soft contact with good chemical tolerance

Catalog examples to benchmark:

• Glass Manufacturing Brush for delicate panels with PBT filaments

• LCD Cleaning Spring Brush Roller for electronics and displays

• Cattle Body Rotary Roller Brushes for gentle contact cleaning and grooming

• Sewage Treatment Brush Roller where wet, gritty environments stress fiber stability




PEEK and High-Temperature, Chemical-Resistant Options

PEEK and other high-performance plastics tackle heat and harsh chemicals better than nylon and PBT. When you have caustics, oxidizers, or temperatures that soften standard plastics, PEEK remains stable and gives you a durable, predictable Cylinder Brush.

Consider PEEK when:

• You face hot caustic wash steps or solvents

• You need anti-static cylinder brush filaments that also handle heat (available as blends)

• You run near ovens or on lines where components carry heat into the brush

PEEK costs more, so use it where it solves a real problem—chemical attack, heat, or mechanical fatigue that keeps killing standard filaments.

Horsehair and Other Natural Fibers

Horsehair, tampico, and other natural fibers provide extremely gentle contact and hold liquids well. They shine in polishing or finishing soft materials or where you want to spread a compound evenly.

Use horse hair cylinder brush for polishing when:

• You need gentle dusting without static build-up

• You want a soft wipe on sensitive coatings

• You run dry and want very quiet, smooth contact

Catalog example to benchmark:

• Factory Wholesale Custom Horse Hair Brush Roller for gentle polishing and dusting




Cylinder Wire Brush Materials: Stainless, Carbon Steel, Copper/Brass

Wire is the blunt instrument—for good reasons. When you need an Industrial Wire Brush to tear through rust, scale, char, or heavy burrs quickly, wire brings the aggression. A Cylinder Wire Brush configured with short trim and a helical or chevron fill throws debris away and keeps cool enough to run continuously.

Pick your wire like this:

• Stainless steel: Resists corrosion; default for wet or corrosive lines

• Carbon steel: Cuts fastest; default for dry lines without corrosion concerns

• Brass or copper: Softer and conductive; reduces sparking and is kinder to surfaces

Where wire shines:

• Cylinder wire brush for rust removal after storage or processing

• Deburring thick tabs on punched or plasma-cut steel

• Cleaning scale before welding or coating

Where wire can disappoint: delicate surfaces scratch, and safety needs go up. If finish matters, pair wire with abrasive nylon in a second station to refine the surface.

Catalog examples to benchmark:

• Abrasive Wire Cylinder Brush for aggressive deburring and finishing combo lines

• Copper Brush Roller for conductive cleaning or softer wire contact




Fill Patterns and Helix Direction That Change Outcomes

Pattern is the quiet driver of quality and uptime. It defines contact cadence, debris flow, and noise. Your options:

• Straight: Full-face contact at once, good for uniform polishing and light debris

• Helical: Progressive contact, low chatter, constant discharge to one side

• Chevron (V-shaped): Opposing helices balance forces across wide parts and move debris centrally or outward depending on V orientation

• Segmented: Gaps for cooling and discharge; fast swap of worn sections; segmented cylinder brush maintenance is simpler and cheaper




Choosing helix direction matters. Left-hand vs right-hand wraps decide the discharge side. Pick the direction that sends debris toward a safe collection point or vacuum inlet. On dual-brush stations, opposing helices can center debris for pickup.

If you’re deep in the weeds on helical vs straight fill pattern cylinder brush for a conveyor line: start with helical to cut chatter, run cooler, and keep debris moving. Switch to chevron when wide sheets drift or show edge artifacts.

Size, Trim, and Density: Tuning the “Same” Material for Different Jobs

Material is only half the story. Tuning the same filament with size, trim, and density changes how it behaves.

OD/ID/Face width basics:

• OD (outer diameter) and RPM decide tip speed. Bigger OD at the same RPM equals higher tip speed. Choose an OD that hits your target tip speed in the middle of the motor’s comfortable range to leave headroom.

• ID (inner diameter) should fit your shaft precisely. Loose fits create runout and inconsistent finish.

• Face width should cover the part with a small margin so you don’t create edge marks on product.

Custom Cylinder Brush sizes and trim length:

• Short trim: Stiffer, stable at higher speed, better for aggressive cleaning and deburring

• Long trim: Softer, conforms to texture, better for delicate surfaces

Fill density:

• High density: More contact, faster cleaning, but can trap debris and heat

• Lower density: Easier discharge, runs cooler, often better for sticky debris

If you need a chevron pattern cylinder brush with wire: specify short trims, balanced core, and opposing helices to stabilize wide sheets and throw hot chips away from edges.

Types and Uses of Industrial Brushes: Where Cylinder Brushes Fit

Industrial brushes include cylinder, strip, tufted strip, twisted wire, shank, road cleaning, sponge, belt, and more. For continuous, wide-area tasks, a Cylinder Brush is the default. But in some cases, a Round Brush or generic Roller Brush (a catch-all term that often includes planted or wound cylindrical brushes) is a better fit.

Industrial Cylinder Brush vs Round Brush vs Roller Brush:

• Industrial Cylinder Brush: Best for conveyorized cleaning, sheet finishing, and consistent contact over width; fits stations where uptime and repeatable finish matter.

• Round Brush: Best for spot work—weld cleanup, corners, or small features; often hand-held or in compact fixtures. That’s the answer to round brush vs cylinder brush in production lines: cylinder for continuous coverage, round for localized precision.

• Roller Brush: A broad term used in multiple industries; in many catalogs a Roller Brush is a cylinder brush. If you see roller brush vs belt brush in packaging, you’re comparing rotating contact vs moving belt contact; rollers scrub or wipe, belts move product.

When to specify an Industrial Wire Brush instead:

• Heavy scale, rust, slag, or thick burrs demand wire. Choose wire when nylon or abrasive nylon won’t remove material fast enough. You can follow with abrasive nylon to refine the finish.




Comparison Tables You Can Act On

The first table compares common cylinder brush materials and how they behave. The second maps industries and processes to recommended builds you can actually buy or sample.

Materials comparison table

Applications mapping table

These tables cover most cylinder brush materials comparison scenarios buyers search for, including high-temperature cylinder brush material needs, anti-static cylinder brush filaments for packaging, and copper wire cylinder brush use cases in conductive applications.

Real-World Builds and What to Expect

Conveyor cleaning with nylon

• Problem: A packaging plant’s belts collect label fragments and paper dust, tripping sensors and causing unplanned stops.

• Build: A nylon Industrial Cylinder Brush with medium trim and helical fill pushes debris toward a vacuum pickup. Density is tuned to shed particles. The result: fewer stoppages, lower amperage draw, and cooler running. Related search: cylinder brush for conveyor cleaning.

Glass and LCD cleaning with PBT

• Problem: Delicate glass panels pick up slurry streaks and fine grit after grind/polish.

• Build: PBT with short trim and high density achieves even, low-scratch contact; a mild helix moves slurry away from center. Segmented cores improve cooling and speed cleaning. The result: better yield, fewer visible artifacts. See LCD Cleaning Spring Brush Roller and Glass Manufacturing Brush for reference. Related search: printing machine brush roller nylon vs PBT and glass manufacturing brush with PBT filaments.

Metal deburring with wire and abrasive nylon

• Problem: Laser-cut stainless sheets need oxide removal and edge radiusing without gouging the face.

• Build: First station uses a Cylinder Wire Brush with stainless wire, short trim, and double-start helix for heat control and chip evacuation. Second station uses abrasive nylon to even out the finish. The result: compliant edges and a consistent surface ready for coating. Related search: cylinder wire brush for rust removal and abrasive nylon cylinder brush for deburring.

Wood polishing with sisal and abrasive nylon

• Problem: A flooring line needs uniform grain opening before stain with minimal fuzz.

• Build: Sisal Sandpaper Oblique Roller Polishing Brush uses oblique/spiral geometry for smooth engagement, with abrasive nylon following lightly to level fibers. The result: consistent stain uptake, lower rework.

Sanitation and wastewater with PP/PBT or wire

• Problem: Algae film and grit slow down a clarifier.

• Build: PP or PBT with medium trim and lower density to shed biofilm; in severe scale zones, a stainless wire station removes deposits. The result: higher throughput and less manual scraping. See Sewage Treatment Brush Roller.

Livestock grooming with horsehair or soft PP

• Problem: Improve cattle comfort and skin health.

• Build: Soft PP or horsehair rollers with longer trim, straight or gentle helix, sealed ends. The result: gentle mechanical grooming and cleaner hides. See Cattle Body Rotary Roller Brushes.

These industrial cylinder brush roller applications echo the catalog categories you can order or customize, tightening the loop from material choice to a ready-to-source build.

Sourcing Tips from an Industrial Brush Manufacturer

Choosing a supplier is as important as choosing a filament. A strong Industrial brush manufacturer controls molding, machining, drilling, planting/winding, trimming, grinding, and final balancing. That control shows up as lower vibration, longer bearing life, and a finish that stays in spec.

What to prepare for a fast quote:

• Part material, coating, and scratch sensitivity

• Debris type and duty severity (dust, chips, slurry, scale, burrs)

• Line speed and available brush RPM (target tip speed if you know it)

• Environment (wet/dry, temperature, chemicals, ESD/food-grade)

• Size targets: OD/ID/face width (and max length for handling)

• Filament family preference: nylon, PBT, PP, horsehair, PEEK, abrasive nylon, or wire type

• Trim length and density goals (or describe the feel you want)

• Pattern preference: straight, helical, chevron, segmented; helix direction based on where you want debris to exit




Working with a Wire Brush manufacturer specifically:

• Clarify wire type (stainless vs carbon vs brass/copper), filament diameter, and trim length

• Confirm safety and guarding requirements on your machine

• Ask for dynamic balancing on large ODs and long face widths

• Request sample sections where practical, especially for custom cores or externally wound designs




QA and validation:

• Balance and runout checks, planting/winding consistency, final trim quality

• Pilot testing at your real speeds and pressures; monitor finish, temperature rise, and motor current

• If your line runs mixed SKUs, consider segmented designs to swap only worn regions







Fill Patterns, Speed, and Pressure: Practical Tuning

Straight fill for polishing and light debris

• Full-face contact makes finish uniform at low loads

• Simplest to balance; often most economical

• Risk: debris streaks if density is too high and chip load increases

Helical fill for smooth running and constant discharge

• Progressive engagement reduces chatter and noise

• Moves debris to a planned side; ideal for conveyor belts and dirty lines

• Risk: pick the helix direction to match your pickup point, or you’ll chase chips

Chevron fill to balance forces across width

• Opposing helices stabilize wide sheets and keep edges cleaner

• Direction of V determines whether debris moves inward or outward

• Risk: needs careful setup to avoid trapping debris at the center

Segmented fill for hot, heavy, or variable loads

• Gaps improve cooling and discharge; segments swap fast

• Useful for abrasive slurry or where one zone wears harder

• Risk: mismatched segments create finish steps; keep trims consistent

Speed/pressure rules of thumb:

• Cleaning jobs: tip speed modestly above line speed; flex filaments, don’t buckle them

• Wire jobs: short trims, incremental pressure, watch temperature and finish

• If you need to keep raising pressure to maintain results, change the brush—trim length, density, or filament—not just the setting




Explore Products and Custom Options

Whether you need gentle dusting, aggressive scale removal, or anything in between, the fastest path is to start from a proven build and tweak toward your line. The catalog includes:

• Nylon Brush Wheel for general dusting and cleaning

• Abrasive Wire Cylinder Brush for deburring and finishing

• Copper Brush Roller for conductive cleaning and reduced sparking

• Factory Wholesale Custom Horse Hair Brush Roller for soft polishing

• Transport Belt Cleaning Brush Roller for belts and rollers

• LCD Cleaning Spring Brush Roller for electronics

• Glass Manufacturing Brush for low-scratch glass care

• Sisal Sandpaper Oblique Roller Polishing Brush for wood

• Printing Machine Brush Roller for press-side cleaning

• Sewage Treatment Brush Roller for wet, gritty environments

• Cylindrical brush (general-purpose)

• Cattle Body Rotary Roller Brushes for grooming

• Rubber Brush Roller and Sponge Brush Roller for special contact needs

• Spiral Brush and Belt Brush for alternative conveyance or winding layouts

Not sure which material or pattern to pick? Ask for a sample and a quick design review—most issues become obvious in a short pilot. Start with familiar builds, then adjust Cylinder Brush hair diameter, trim, density, and pattern in small steps until your finish, temperature, and current draw stabilize.

Types and Uses of Industrial Brushes: A Practical Map

Buyers often search for round brush vs cylinder brush in production lines or when to use an Industrial Wire Brush over a nylon build. Here’s a concise map:

• Cylinder Brush: Conveyor cleaning, panel finishing, edge radiusing, gentle guiding—wins when you need even pressure across width and consistent repeatability.

• Round Brush: Spot work on welds, corners, and tight features—wins where localized precision matters more than coverage.

• Industrial Wire Brush: Scale and rust removal, fast deburring—wins where cutting speed matters most, tempered by scratch risk.

• Roller Brush: Often synonymous with cylinder, but can also mean externally wound strip-based rollers. Use as a category term when you need a rotating contact drum rather than a belt or stationary strip.

In packaging, it’s common to see roller brush vs belt brush discussions. Belt brushes move product and provide light contact; rollers deliver stronger wiping or scrubbing. Many lines use both.

FAQs

Q1: What material is best for a Cylinder Brush on delicate glass or LCD?
A1: PBT with short trim and high density provides even, low-scratch contact. Pair with a mild helical fill or segmented layout to keep slurry moving off the face. These builds are proven in glass and electronics; see catalog items like Glass Manufacturing Brush and LCD Cleaning Spring Brush Roller.

Q2: When should I choose a Cylinder Wire Brush instead of nylon?
A2: Use wire when you have heavy rust, scale, or aggressive burrs to remove quickly. Stainless wire is best for wet or corrosive lines; carbon steel wire cuts fastest in dry lines; brass or copper wire reduces sparking and is kinder to surfaces. If a single-step finish matters, follow wire with abrasive nylon to refine the surface.

Q3: Is abrasive nylon a good replacement for wire?
A3: For controlled edge radiusing and a more uniform finish with fewer deep scratches, yes. Abrasive nylon removes material predictably but isn’t as fast as wire on thick scale. Many shops combine them: wire first for speed, abrasive nylon second for finish.

Q4: What does “Cylinder Brush hair” mean in specs?
A4: It refers to the filaments or brush fibers. Material, diameter, trim length, and fill density decide stiffness and contact pressure. Getting those four right often matters more than fine-tuning speed and pressure later.

Q5: How do I choose between straight, helical, chevron, and segmented fills?
A5: Straight excels at uniform polishing with light debris; helical reduces chatter and throws debris to one side; chevron balances forces on wide sheets and can direct debris inward or outward; segmented adds cooling and quick swaps for hot or dirty lines. Choose based on debris load and the geometry of your parts.

Q6: Round Brush vs Industrial Cylinder Brush—who wins where?
A6: A Round Brush wins in tight spaces and on local features; an Industrial Cylinder Brush wins when you need continuous, wide-area contact on conveyors or panels. Many lines use both: cylinder for the main pass, round for touch-ups.

Q7: What should I tell an Industrial brush manufacturer to get a fast, accurate quote?
A7: Share your part material and finish sensitivity, debris type, line speed and available RPM, environment (wet/dry, temperature, chemicals, ESD/food-grade), desired OD/ID/face width, preferred filament family, trim length and density, and any pattern preferences (straight, helical, chevron, segmented). If you need wire, specify the wire type and diameter. A Wire Brush manufacturer can then suggest a safe starting window and sample options.

Conclusion

If you match material to the job, you get a Cylinder Brush that runs cooler, lasts longer, and gives you repeatable finish quality. Nylon and PBT cover most cleaning and light finishing; abrasive nylon bridges into deburring with smoother results; stainless, carbon steel, and copper/brass wire bring the speed for heavy rust and scale. PEEK and horsehair fill important edges of the map—high-temperature chemical lines and gentle polishing. Pattern, trim, and density then tune the same material to your line, while OD/ID/face width make the brush fit like a glove.

Use the quick checklist to shortlist materials, the tables to choose patterns and trims, and the real-world builds to sanity-check your plan. Then run a small sample on your own parts and lock in the spec. That’s how you turn a tricky selection into a controllable, reliable process.

Ready to review options, request a design check, or order samples? Start here and compare builds that already work in the field: Cylindrical Brush Products
