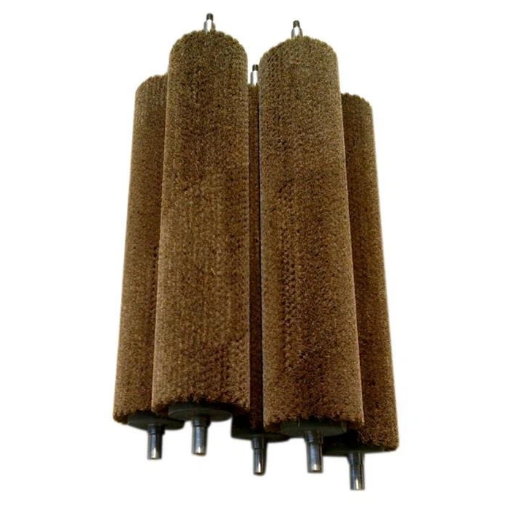

A cylinder brush—also called a cylindrical brush or roller brush—is a rotating brush built around a shaft or core that keeps steady, wide‑area contact with a surface. With the right filament (cylinder brush hair), fill pattern, and speed/pressure settings, it can clean, deburr, polish, guide, or control moisture across continuous production lines with uniform, repeatable results.
A cylinder brush is a shaft‑driven or core‑mounted rotating brush designed for continuous, full‑width contact on moving materials such as panels, sheets, belts, and parts. It delivers stable pressure and uniform contact, making it ideal for cleaning, dust removal, surface finishing, deburring, gentle conveying, and liquid management in conveyorized, automated, or robotic lines.
The biggest difference from a small Round Brush or cup/wheel brush is scale and stability: a cylinder brush covers a broad face width and is balanced to run smoothly at line speeds without leaving streaks or hot spots. Because it uses planted or wound filaments in set patterns, you can tune aggressiveness, debris discharge, and noise for the exact job, whether that’s fruit polishing or oxide removal.
Cleaning and dust removal on conveyors, panels, sheets, tubs, and molded parts
Surface finishing and light polishing before coating or packaging
Deburring and oxide/burnt‑on residue removal using abrasive nylon or a Cylinder Wire Brush
Guiding, spacing, and gentle conveying of delicate products in packaging lines
Moisture carry‑off and liquid control in washing or printing processes
Sanitation and road sweeping in municipal and facility maintenance
The brush mounts to a shaft or slides over a hollow core. Bearings support the assembly, a motor drives it, and a guard keeps operators safe. Filaments—sometimes called cylinder brush hair—are either planted into drilled holes or wound externally as a spiral/chevron strip. As the brush spins, each filament bends at contact, wipes or cuts, then springs back. Cleaning happens when tips sweep away dust and chips; finishing or deburring occurs when tips shear micro‑peaks or when abrasive nylon or wire filaments remove burrs and scale.
Performance depends on five adjustable factors: filament material, filament diameter, trim length, fill density, and fill pattern. Add in operating choices—outer diameter (OD), RPM (tip speed), contact pressure, and helix direction—and you have a practical toolkit to dial in results across surfaces as different as soft fruit, anodized aluminum, laminated board, or laser‑cut steel.
A Round Brush mounted on a hand tool wins when you need to reach a corner, touch up a weld bead, or spot‑clean a small area. A cylinder brush wins when your job is continuous and wide—think conveyor belt cleaning, panel dusting, or sheet‑metal edge finishing. Many plants keep both: a Round Brush for localized work and an Industrial Cylinder Brush for the main line.
Getting filament choice right determines how gentle or aggressive the action will be and how long the brush lasts. Start with your surface sensitivity, debris type, temperature, and chemical exposure. Then pick the filament family and fine‑tune with diameter and trim length.
Nylon (PA) is the workhorse for general cleaning. It’s tough, elastic, and handles fatigue well. Because nylon absorbs a little moisture, it becomes more forgiving in wet environments—useful for painted parts, plastics, or packaging films. If you need controlled cutting, abrasive nylon embeds grit (typically silicon carbide or aluminum oxide) in the nylon base and performs predictable deburring without deep scratches.
PBT (polyester) holds stiffness in wet lines since it absorbs far less water than nylon. It’s popular in glass and electronics cleaning, where consistent, low‑scratch contact is essential, especially on lines that cycle from wet to dry.
PP (polypropylene) excels in food handling and fruit and vegetable washing because it’s economical, resists water and many chemicals, and comes in soft grades suited to delicate skins. Its temperature ceiling is lower than nylon or PBT, so avoid high‑heat, high‑friction zones.
Wire filaments are your pick for heavy work. A Cylinder Wire Brush with stainless or carbon steel wire removes rust, oxide scale, and stubborn residues quickly. Stainless wire resists corrosion; carbon steel cuts aggressively but needs a dry environment. Brass or phosphor bronze wire is softer, conducts electricity, and reduces sparking risk; it’s good for molds, electrical components, and light oxidation removal where you want less scratching.
Natural fibers (horsehair, tampico, sisal) and specialty filaments extend your toolkit. Natural fibers are gentle and hold liquids or compounds, ideal for dusting and fruit polishing. PEEK and other high‑performance plastics bring high‑temperature and chemical resistance where PBT and nylon fall short. For static‑prone lines, conductive or anti‑static filaments reduce dust cling and protect sensitive electronics.
Use this table to shortlist families based on environment and task. Validate the final spec with a sample at real line speeds.
| Filament type | Typical temperature range | Relative stiffness/flex | Typical line speed compatibility | Best for | Pros | Considerations |
|---|---|---|---|---|---|---|
| Nylon (PA) | Up to ~120°C (short-term) | Medium, elastic | Low to high | General cleaning, dusting, sealing | Durable, flexible, widely available | Moisture absorption can alter stiffness |
| PBT | Up to ~120°C | Medium, consistent wet | Low to medium-high | Precision cleaning, wet/dry cycles | Low water absorption, stable stiffness | Slightly more brittle than PA in some grades |
| PP | Up to ~90°C | Medium-low | Low to medium | Food lines, fruit/veg washing, general sweep | Economical, chemical resistant, low density | Lower heat resistance |
| Abrasive nylon | Up to ~120°C | Medium-high (cuts) | Low to medium | Deburring, edge radiusing, fine finishing | Controlled material removal | Grit choice critical; heat softens PA base |
| Stainless steel wire | Up to ~250°C+ | High | Medium to high | Scale/rust removal, weld cleaning | Aggressive, corrosion resistant | Can scratch delicate surfaces |
| Carbon steel wire | Up to ~200°C | High | Medium to high | Heavy deburring, baked‑on residue | Very high cutting action | Rust in wet environments |
| Brass/bronze wire | Up to ~200°C | Medium | Low to medium | Light oxidation removal, conductivity needed | Softer than steel, reduced sparking | Faster wear |
| Natural fiber/tampico | Up to ~90°C | Low to medium | Low to medium | Gentle dusting, soft‑contact cleaning | Gentle, holds liquids/compounds | Lower durability |
| PEEK | Up to ~250°C+ | Medium-high | Medium | High‑temp, chemical exposure | Exceptional stability and resistance | Premium cost |
Long‑tail search examples to help you refine the spec include nylon cylinder brush vs steel, cylinder wire brush for deburring, PBT cylinder brush for glass cleaning, and ESD‑safe cylinder brush for packaging lines. If you’re unsure, start gentler and increase stiffness only if results fall short.
Pattern determines how the brush contacts the surface, how chips or slurry discharge, and how smooth and quiet the brush runs. Cylindrical brush patterns often get framed as helical vs straight, but chevron, segmented, and staggered combinations can solve specific problems better.
Straight rows provide full‑face contact at once. Use them for uniform wiping or polishing with light debris. If you see streaks, add small gaps or switch to staggered rows to help particles exit. Straight is easy to balance and cost‑effective.
Helical or spiral rows—single or double start—engage progressively. Only part of the face is in contact at any moment, which smooths vibration and reduces noise. Debris naturally migrates toward one side. For a cylinder brush for conveyor cleaning, helical patterns are widely chosen because they discharge debris continuously and run cooler at higher speeds.
Chevron (V‑shaped) patterns use opposing helices to balance lateral forces. They help keep wide sheets and panels tracking straight and either center or disperse debris depending on V orientation. On wide metal sheets, chevrons prevent edge chatter and reduce visible artifacts.
Segmented or interrupted fills replace continuous rows with sections separated by gaps, or with replaceable brush segments on a splined core. The airflow through gaps improves cooling, and maintenance is faster—swap a worn segment rather than the full brush. This approach is common for fruit and vegetable washing, sanitation equipment, and high‑chip environments.
Staggered density or mixed trim length blends gentle sweeping with more assertive scrubbing in one brush. Longer trim is softer and conforms to texture; shorter trim is stiffer and stable at speed. Staggering helps lines that run mixed product sets without constant brush changes.
Helix direction matters. Left‑hand vs right‑hand winding controls where debris goes. Choose the direction that sends chips toward vacuum pickup, side drains, or safe collection points. On dual‑brush stations, opposing helix directions can confine debris to the center or push it outward symmetrically.
Two structural families cover most needs: a brush built with an integrated shaft and a brush that’s a sleeve or core that slides over a reusable shaft. Shafted builds are rigid and simple to mount, perfect for dedicated machinery with long runs. Core‑only brushes lower replacement cost and speed changeovers—ideal for lines that swap materials often.
Core materials change handling and balance. Steel and stainless steel bring stiffness and strength for large diameters or high RPM; stainless resists corrosion in wet lines. Aluminum reduces mass and improves heat dissipation on mid‑size rollers. Engineered plastics can reduce noise and resist chemicals for smaller brushes.
Dimensions to confirm include OD, ID, face width, filament diameter, trim length, and fill density. OD and RPM set tip speed; ID must match shaft fit to avoid runout; face width should cover the part plus a margin. Filament diameter controls stiffness; trim length tunes flexibility; density determines contact points versus debris release. A replaceable segmented brush roller can reduce total cost of ownership when you expect heavy wear or frequent pattern revisions.
In practice, a cylindrical brush with shaft will be specified when precision alignment and minimal runout are crucial, while a hollow core cylindrical brush with collars or flanges will be chosen where quick swaps drive uptime.
Tip speed is how fast the filament tips move. For cleaning, aim for a tip speed modestly above the line speed to create an effective wipe without skidding. For deburring, a shorter trim, stiffer filament, and deliberate passes can deliver controlled material removal. Pressure should flex filaments, not buckle them. If you notice rising temperatures, resin odors, or an increase in required pressure to maintain results, you’re likely running too fast, too hard, or with density that traps debris.
A practical approach is to fix line speed, then vary brush RPM in small increments while monitoring current draw, part temperature, and finish quality. When these stabilize at acceptable levels, you’ve found a safe operating window. If results still fall short, revisit filament material and pattern rather than forcing pressure.
Woodworking and panel finishing
A cylindrical brush for woodworking removes dust and lifts fibers gently before stain or sealer. Nylon and PBT with short trim and high density maintain uniform contact. For rustic or raised‑grain effects, an abrasive nylon roller brush in straight or staggered rows opens soft grain without tearing harder rings. If sawdust loads are heavy, a double‑start spiral wound cylinder brush evacuates debris better than straight rows.
Metal sheet punching, bending, and laser cutting
For scale and oxide removal, the classic is a cylinder wire brush for deburring and cleaning. Carbon or stainless steel wire trims cut fast; stainless resists wet corrosion. When you need edge radiusing and a smoother finish, abrasive nylon offers consistency without gouging flats. On wide sheets, a chevron brush pattern minimizes lateral forces and yields predictable tracking. In precision finishing cells, nylon cylinder brush vs steel comparisons often end with a hybrid line—wire for first pass, abrasive nylon for final finish.
Glass panels and electronics
These demand low scratch risk and precise contact. PBT or fine nylon with short trim delivers even pressure. Spiral or segmented fills channel slurry away from the face and reduce streaks. Downstream, a PVA sponge roller removes water without spotting. An ESD‑safe cylinder brush reduces dust cling in static‑sensitive stages. For touch panels and display glass, keep densities high and trims short.
Food handling and agriculture
Soft PP or natural fibers protect delicate skins. Longer trim and lower density reduce pressure points. Straight rows give gentle sweeping; a mild helix improves debris release. Sealed cores, stainless hardware, and washdown‑friendly designs are standard. Fruit and vegetable washing brush roller modules often use segmented cores to speed sanitation cycles.
Conveyor cleaning, packaging, and printing
For belts and rollers, a cylinder brush for conveyor cleaning dislodges crumbs, labels, and fibers. Nylon or mixed nylon/PP performs well. Helical or segmented designs minimize buildup and ease washdown. In high‑speed packaging, an industrial cylinder brush roller with conductive filaments can reduce static and dust cling.
Sanitation and road cleaning
Street sweepers and floor scrubbers use rigid PP or wire‑filled rollers. Externally wound spiral designs throw debris efficiently and simplify replacement. Replaceable segment systems keep downtime low on municipal equipment.
Solar panels and delicate coatings
For solar panel cleaning cylinder brush applications, choose PBT or fine nylon with short trim and high density, run at low pressure, and prioritize spiral patterns for quiet, smooth contact. Always validate on coated glass to avoid micro‑scratches.
You can move from a general need to a working spec with a short, practical process. Use this as a starting point for an industrial cylinder brush roller that fits your line:
Define the job. Decide if your primary goal is cleaning, polishing, deburring, guiding, or moisture control. Aggressive tasks push you toward stiffer filaments or a Cylinder Wire Brush; delicate tasks point to PBT or fine nylon.
Profile the surface. Note base material (glass, aluminum, stainless, plastic, wood), coatings, and scratch sensitivity. For mixed SKUs, prioritize the most delicate surface.
Map the environment. Record line speed, available brush RPM, wet/dry, slurry presence, chemicals, and temperature. These set material and hardware boundaries.
Size the brush. Choose face width to cover your part plus a small margin. Pick an OD that achieves target tip speed at available RPM. Confirm ID/shaft fit to minimize runout.
Tune the cylinder brush hair. Choose filament family, then diameter and trim length for stiffness and conformance. Set fill density to balance contact and debris release.
Pick a pattern. Straight for full‑face uniform contact and light debris; helical for higher speeds and continuous discharge; chevron for force balance across wide parts; segmented for cooling and fast swaps.
Validate with a sample. Run the brush at real speeds on your parts. Monitor finish, temperature, and current draw. Adjust trim or grit in small steps—small changes often double brush life.
If you want help translating these steps into a drawing or a prototype, request a free design discussion and sample from a custom cylindrical brush manufacturer that controls molding, machining, drilling, tufting/threading, and final trimming.
Mounting and alignment start before the brush ever spins. Inspect shaft runout and bearings. Seat the core flush and tighten collars or flanges evenly to avoid eccentricity. On longer face widths or larger ODs, dynamic balancing keeps vibration low and finishes consistent.
Safe operation depends on guards and PPE. Wire fragments, chips, and debris can eject at speed; wear eye and hand protection, especially when using a Cylinder Wire Brush. After installation, ramp RPM up gradually and watch for vibration or unusual noise.
Daily discipline extends life. Use enough pressure to flex filaments but not buckle them. In wet lines, maintain flow and filtration—embedded abrasive fines can re‑scratch surfaces and glaze filaments. Watch for heat and odors; they usually mean too much speed or trapped debris. Periodic vacuuming or rinsing keeps filaments open. Light trimming restores a level face, but remember that shorter trim stiffens the brush—take off only what you need.
Replace the brush when finish consistency drifts, when required pressure climbs steadily, or when vibration increases. Keep a simple log of hours, RPM, line speed, trim length, and finish metrics; it will make the next spec faster and more precise.
Streaks or lines on the work often point to uneven trim or debris trapping. A spiral wound cylinder brush helps move debris off the face; a slight density reduction or segmented gaps can also help. Excess heat suggests too high a tip speed or too much pressure—ease both and improve discharge.
Rapid filament breakage typically comes from overpressure or misalignment, especially with wire. Shorten trim slightly or step up filament diameter within safe limits. Poor cleaning despite pressure is a cue to switch to a more assertive filament (e.g., abrasive nylon) or to add passes instead of pushing harder once.
Vibration and noise call for balancing, bearing checks, and, sometimes, a pattern change. Helical and chevron fills reduce chatter compared to straight rows when debris loads and speeds rise.
Long, wide brushes magnify small errors. Heavier steel or stainless cores damp vibration; aluminum helps with heat on mid‑size rollers. Shorter, uniform trims stabilize contact at speed. Helical patterns reduce impulsive engagement, while chevrons balance lateral forces on wide work. Choose helix direction so debris exits toward pickups and drains by design, not by chance.
If you run robots or cobots, smoother engagement improves end‑effector accuracy and sensor reliability. Quiet, helical patterns paired with balanced cores and quality bearings are worth the up‑front effort.
You do not need complex math to set a safe window. Fix the line speed and start the brush at a low RPM. Increase RPM in small steps, watch current draw, check part temperature near contact, and inspect finish. When results stabilize with acceptable current and temperature, note the RPM and proceed. If results are weak at that point, step up filament stiffness or grit, or shorten trim. Avoid the temptation to simply add pressure; it’s a fast way to shorten life and mark parts.
For sensitive coatings and glass, keep tip speed only modestly above line speed and trims short. For cylinder wire brush for deburring on metals, pair shorter trim with firmer pressure, but increase slowly and track temperature to avoid tempering heat or color changes.
Light burrs on laser‑cut stainless panels
A plant needs consistent edge radiusing before powder coat without gouging the flat. They choose an abrasive nylon roller brush with medium grit and a chevron pattern to balance forces on wide sheets. Trim is short for stiffness and control. Aluminum core with steel journals keeps weight moderate and stiffness high. They tune pressure by monitoring current draw and finish Ra; the result is repeatable edges and fewer reworks.
Mixed produce washing—apples and pears
Goal: clean without bruising. The team selects soft PP or tampico blend filaments with longer trim and lower density. Straight rows keep contact gentle, and a mild helix aids debris release. Sealed cores and stainless hardware enable washdown. Downstream, a PVA roller manages moisture, reducing drip marks on packaging lines.
Conveyor belt cleaning in packaging
An operation faces label and fiber buildup. They install a cylinder brush for conveyor cleaning using mixed nylon/PP with staggered density. A double‑start helix channels debris to the edges where a vacuum pickup sits. ESD‑safe filaments reduce static and dust cling. A segmented core makes swap‑outs fast when one area wears faster than others.
Solar panel maintenance
Dust and abrasive sand need removal without micro‑scratches. The team picks PBT with fine diameter and short trim, high density, low pressure, and a spiral pattern for smooth, quiet running. They validate on coated glass samples, confirm no visible haze, and set RPM limits based on temperature rise.
Street sweeper cylinder brush
A municipality requires fast replacement and efficient throw. They choose an externally wound spiral design with wire or rigid PP for curbs, paired with replaceable segments. Helix direction sends debris into the collection path, and the maintenance crew swaps segments instead of full drums to keep vehicles in service.
Overspecifying density is a classic error. High density improves contact, but it can trap debris and heat the interface, hurting life and finish. If you see glazing or streaks, test a slightly lower density or move to helical/segmented patterns.
Running too fast is another trap. Tip speed that outruns debris discharge leads to heat, odor, and finish drift. In many cleaning jobs, a modest margin above line speed is enough—saving energy and wear.
For delicate surfaces, starting with wire is risky. Even soft brass can cast micro‑scratches. Start with PBT or fine nylon and step up only if results demand it.
Finally, skipping validation on your actual line invites surprises. A short pilot with a sample often reveals the right trim length or grit, especially when you’re comparing nylon cylinder brush vs steel for the first time or deciding between cylindrical brush patterns helical vs straight.
Automation and cobots are moving brushing tasks into robotic cells. Quiet helical patterns with balanced cores reduce sensor noise and improve accuracy. ESD‑safe and conductive filaments are gaining ground in electronics and high‑speed packaging to reduce dust cling and protect components. Sustainability pushes rebuildable cores and segmented brushes to cut waste, while recycled nylon/PBT and plant‑based fibers expand material options. In food processing, hygienic designs with sealed cores, stainless shafts, and quick‑release collars streamline sanitation while keeping brushes stable at speed.
Two brushes with the same drawing can run very differently. Core straightness, drilling accuracy, planting consistency, and final trimming determine balance, vibration, and finish. A builder with one‑stop control—molding, machining, drilling, tufting/threading, trimming, and grinding—delivers more consistent brushing forces and longer service life.
Anhui Wanze Brush Industry Co., Ltd. has over a decade of focused production experience and offers free design solutions and samples so you can test cylinder brush hair, trim, and pattern on your actual equipment. Material options include plastics (PP, PVC, PE, PA, PBT, PS, PEEK), metals (iron, stainless steel, copper), natural fibers (horsehair, tampico), and specialty filaments (abrasive nylon, carbon fiber, steel fiber). Performance variants cover high/low temperature, conductive and anti‑static, wear‑resistant, and antibacterial needs.
Popular configurations the team supports include gentle PBT brushes for glass and electronics, abrasive nylon for controlled edge radiusing on metal, Cylinder Wire Brush builds with stainless or carbon steel for scale removal, soft PP/tampico for fruit lines, and segmented belt‑to‑drum solutions for conveyor cleaning.
Q1: What is a Cylinder Brush and how does it work?
A1: A Cylinder Brush is a rotating brush on a shaft or core that provides wide, continuous contact. As it spins, the cylinder brush hair flexes and wipes the surface; with abrasive nylon or wire, it can also deburr and remove scale. The result depends on filament type, pattern (straight, spiral, chevron), trim, density, tip speed, and pressure.
Q2: Cylinder Wire Brush vs nylon—when should I choose each?
A2: Choose a Cylinder Wire Brush for aggressive removal of rust, mill scale, or heavy burrs on metals. Pick nylon or abrasive nylon when you need controlled material removal and a smoother finish with lower scratch risk. For delicate surfaces like glass or coated panels, fine nylon or PBT is safer; for harsh chemicals or high temperature, consider PEEK or stainless wire.
Q3: Which pattern is better—straight, helical/spiral, or chevron?
A3: Straight rows give full‑face, even contact for light debris and uniform polishing. Helical patterns engage progressively, reduce vibration, and discharge debris continuously—ideal at higher speeds and for a cylinder brush for conveyor cleaning. Chevron balances lateral forces on wide panels and stabilizes tracking. If debris loads are heavy or heat builds, segmented patterns add cooling and faster maintenance.
Q4: How do I size OD, face width, and filament diameter?
A4: Face width should cover your part plus a small margin. OD is chosen to achieve desired tip speed at your available RPM. Filament diameter sets stiffness (thicker is more aggressive, thinner conforms better). Trim length fine‑tunes behavior: shorter trims run stiffer and more stable; longer trims soften contact. Validate choices with a sample on your line.
Q5: What line speed and pressure are safe for most cleaning tasks?
A5: A good starting point is tip speed modestly above line speed, with filaments flexing about 10–20% of their trim length. Increase dwell time or passes before increasing pressure. For cylinder wire brush for deburring, use shorter trims and firmer pressure but raise settings gradually while monitoring temperature and finish.
Q6: How long does a Cylinder Brush last, and how should I maintain it?
A6: Life depends on material, speed, pressure, and debris load. Keep filaments free of packed chips or slurry, trim lightly to restore a level face, and avoid overpressure that buckles filaments. Replace the brush when finish quality drifts, when pressure creep is obvious, or when vibration rises due to wear or imbalance.
Q7: Can a strip brush be wrapped to form a cylindrical brush?
A7: Yes. A strip brush can be wound around a core to create an externally wound spiral cylinder brush. It’s a cost‑effective way to target a specific OD and pattern and simplifies maintenance because you can replace the worn strip instead of the entire brush assembly. This is popular for sanitation gear and conveyor cleaning modules.
Cylinder brushes are the quiet workhorses behind clean, consistent, and efficient production. When you match filament to surface, pattern to debris flow, and size and speed to your line, you reduce defects, cut downtime, and protect parts. Whether you’re specifying a cylindrical brush for woodworking, planning cylinder wire brush for deburring on metal, protecting coated glass, or maintaining moving belts, the right combination of cylinder brush hair, fill density, and pattern turns brushing into a reliable, measurable process.
If you want a confident place to start, bring your part specs, line speed, and finish goals to a builder that manufactures end‑to‑end and can sample fast. Anhui Wanze Brush Industry Co., Ltd. offers integrated molding, precision machining, drilling, tufting/threading, trimming, and grinding—plus free design solutions and samples—so you can prove performance before you commit. Review options or request support here: Industrial Cylinder Brush
If you need help deciding between cylindrical brush patterns helical vs straight, comparing nylon cylinder brush vs steel, or mapping Types of brushes for cleaning and Types of brushes and their uses to your operation, the engineering team can translate your targets into a practical, durable brush that runs true at speed.
