Choosing the right Cylinder Brush is simpler than it looks when you focus on a few practical levers: the surface you’re touching, the debris you’re fighting, and how the brush meets your speed and pressure. Match filament to surface (nylon, PBT, PP, wire, natural fiber, or abrasive nylon), pick a fill pattern (straight, helical, chevron, segmented) that manages debris flow, then size outer diameter, face width, trim length, and density to your line. Validate on real parts, and adjust in small steps. That’s the entire playbook for reliable, repeatable results.
Surface and risk: glass and coated panels call for fine nylon or PBT; metal burrs and rust push you to abrasive nylon or a Cylinder Wire Brush
Debris and duty: light dust needs soft contact; chips and scale need stiffer filaments and a pattern that throws debris out
Pattern choice: straight rows for full‑face polishing; helical for smoother running and continuous discharge; chevron to balance forces on wide sheets; segmented when you need cooling and fast swaps
Size and trim: pick OD for tip speed at your RPM, face width to cover the part, trim length for stiffness or conformity, density to balance contact and clearing
Operating window: set tip speed modestly above line speed for cleaning; increase stiffness and shorten trim for deburring; flex filaments—don’t buckle them
Environment: wet or dry, temperature, chemicals, ESD sensitivity, and hygiene all influence material choices and hardware
Validation: request a sample, run it on your actual parts, measure finish, temperature, and current draw, and adjust trim or grit in small steps

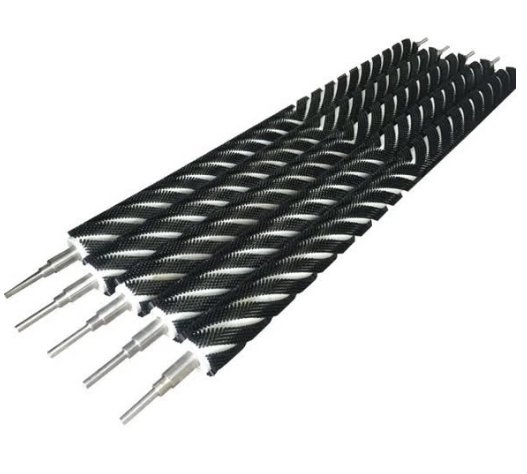

A Cylinder Brush is a rotating roller brush that maintains steady, wide‑area contact while your parts or belts move by. It is built on a shaft or a core that slides over a shaft, then planted or wound with filaments in rows that define how it behaves at speed. This geometry gives the brush a level, balanced footprint and lets you tune the action from gentle dusting to decisive cutting. Because the contact repeats with every rotation, you get consistent cleaning, finishing, or edge conditioning without hot spots, chatter, or surprise scratches—if the brush is specified correctly.
At its core, the brush converts motor power into flexible tip strokes. Each filament bends at the surface, wipes or cuts, then springs back. The stiffness of the filament, the length of its trim, and the density of the fill decide how much energy reaches the surface with each pass. Pattern turns that energy into a continuous, stable process by controlling how contact starts, how heat dissipates, and where debris goes. When you combine these choices with a safe speed and pressure, the result is a predictable process that protects parts and improves throughput.
The fastest way to narrow down the right Cylinder Brush is to pick the correct filament for your surface and debris. Everything else—pattern, size, and speed—builds on this choice. If you start with the wrong filament family, no amount of tuning will deliver the finish you want.
Nylon (PA) is the everyday workhorse for cleaning, dust removal, and light finishing on wood, plastics, and coated panels. It is durable, elastic, and handles fatigue from repeated bending, which is why it shows up so often in universal cleaning modules. Nylon does absorb some moisture; in wet lines this can soften its feel slightly, which often helps protect delicate finishes. For lines that swing from wet to dry, nylon remains a dependable option when you match trim and density to your target contact pressure.
PBT, a polyester filament, holds stiffness more consistently in wet environments because it absorbs far less water than nylon. That consistency is crucial when you need even, repeatable pressure on glass, displays, or electronics. A PBT cylinder brush for glass cleaning with short trims and high density creates a stable, low‑scratch contact that tolerates rinses and recirculated fluids better than many alternatives. If your process needs the same feel in the first and the thousandth part, PBT is an efficient way to get there.
PP (polypropylene) thrives in food‑handling and fruit and vegetable washing because it remains light, chemical resistant, and unaffected by water uptake. Softer PP grades with longer trim lengths can clean and polish produce without bruising. PP is not ideal for high heat or heavy friction, so avoid using it where tip temperatures can rise or where burr removal is the main job.
If you face rust, mill scale, baked‑on residues, or pronounced burrs, a Cylinder Wire Brush might be the most direct solution. Stainless wire resists corrosion and holds up in wet or caustic conditions; carbon steel wire cuts very aggressively in dry lines and is a staple for heavy burrs. For conductive work or reduced sparking risk, brass or phosphor bronze wire tones down aggressiveness while protecting the work from deep gouges. Typical long‑tail use cases include a cylinder wire brush for deburring laser‑cut edges on sheet metal, where you need fast cutting first, then a smoother pass with abrasive nylon.
Wire demands a deliberate setup. Shorter trims and well‑controlled pressure prevent wire buckling and reduce breakage. Safety is a priority: guards, eye protection, and a slow RPM ramp‑up after installation are not optional. With those basics in place, a wire brush can turn a slow, multi‑step hand process into a fast, predictable inline operation.
Natural fibers—horsehair, tampico, sisal—offer a gentle touch, excellent dusting, and, in the case of tampico, good liquid holding for distributing cleaners or compounds. They shine where surface protection outranks speed, such as polishing fruit skins or dusting stained wood before packaging.
Specialty filaments expand what a Cylinder Brush can do. Abrasive nylon embeds grit (like silicon carbide or aluminum oxide) into a nylon base, delivering controlled edge radiusing that rivals wire but leaves a smoother, more uniform finish. PEEK and other high‑performance plastics bring high temperature and chemical resistance for harsh environments. ESD‑safe filaments and blends reduce static‑related dust cling and protect components in electronics or packaging lines. If your process has regulatory or hygiene constraints, a food‑grade cylinder brush using stainless hardware and compliant plastics addresses both cleaning performance and audit requirements.
Pattern determines how the brush contacts the surface and where debris goes. It shapes noise levels, vibration, cooling, and finish quality. You’ll hear buyers debate cylindrical brush patterns helical vs straight, but in practice you’ll often choose among straight, helical, chevron, and segmented fills, then fine‑tune density and trim.
Straight rows put the entire face in contact at once, which makes them strong for even polishing or wiping across flat, stable parts. Straight fills are easier to balance and can be more economical. However, they may trap debris when the dust or chip load is high. In that case, a light reduction in density or the addition of small gaps can help particles escape.

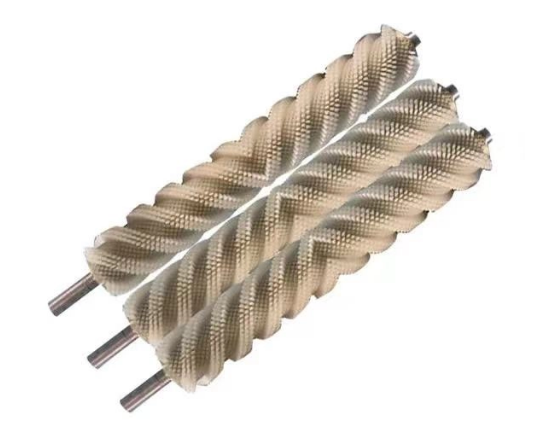

Helical (spiral) fills engage the surface progressively, so only part of the brush is in contact at any moment. This spreads out impact, reduces chatter and noise, and improves debris discharge to one side, especially at higher speeds. A cylinder brush for conveyor cleaning commonly uses a helical pattern, because it keeps the face open, runs cooler, and avoids streaks that appear when debris packs under straight rows. Singles, doubles, and opposing helices all have roles; doubles remove more heat and throw debris more evenly.
Chevron patterns use two opposing helices that form a V across the face. That geometry balances lateral forces on wide sheets and panels and can either center debris or push it outward, depending on V orientation. If your line handles wide glass panels or sheet metal where edge tracking matters, chevron fills reduce side drift and minimize edge marks. A chevron pattern cylinder brush is a good way to stabilize contact on long, thin materials that are sensitive to deflection.
Segmented fills interrupt continuous rows with gaps, or they mount replaceable brush segments on a keyed or splined core. The gaps help cooling and eject debris; the segments cut downtime by letting maintenance replace only the worn region. For sanitation gear, fruit and vegetable washing, and abrasive slurries, segmented designs keep brushes running clean and reduce total cost of ownership.
Helix direction controls the debris exit path. Left‑hand vs right‑hand winding determines which side collects material, and on dual‑brush stations, opposing directions can center or spread debris on purpose. Density controls the number of contact points and the amount of energy delivered. High density makes contact uniform and boosts cleaning power but can trap debris and heat. Lower density releases particles more easily and runs cooler. If you face heat or streaking, a slight density reduction plus a helical fill often stabilizes the process without sacrificing quality.
The best material and pattern won’t save a brush that’s the wrong size or poorly balanced. Size sets the tip speed window; trim length sets the stiffness; core and shaft decisions influence balance, vibration, and ease of changeover. Focus on how these pieces fit your equipment and the finish you need.
Outer diameter (OD) defines how fast the filament tips move at a given RPM. Bigger OD at the same RPM means higher tip speed, which can increase cleaning power but also raise heat on plastics and coatings. It’s useful to set OD and RPM so your target tip speed is achieved in the middle of your motor’s comfortable range; that leaves room to adjust up or down.
Inner diameter (ID) must match your shaft to avoid runout. A loose fit translates to vibration and inconsistent finishes. A precise seat, even clamping pressure, and quality bearings set the stage for smooth operation. Face width should cover your part or belt with a small margin so edge artifacts don’t show up on product. If your parts vary, aim for the largest width you need and use guards to protect the unused region from accidental contact.
Trim length is the distance from the core surface to the filament tips. Short trims act stiffer and remain stable at higher speeds; long trims are softer, conform better to textures, and are safer on delicate surfaces. For fine finishes on glass and coated panels, short, uniform trims on PBT or fine nylon keep pressure consistent. For difficult burrs, short trims on abrasive nylon or wire keep filaments from buckling and deliver decisive cutting. Custom cylinder brush sizes and trim length are common in high‑mix plants, where one station must process multiple part families with minimal changeover.
Fill density affects both aggressiveness and clearing. High density delivers more contact points and faster cleaning up to a point, but it can hold onto debris and heat. Lower density runs cooler and clears more easily. When everything else is right and you still see streaks or glazing, a small density change—combined with a helical or segmented pattern—can be the difference between constant stoppages and smooth production.
Core material impacts handling and vibration. Steel and stainless steel cores bring stiffness for long face widths and high RPM; stainless resists corrosion in wet lines. Aluminum cores reduce mass and improve heat dissipation, which helps in mid‑size rollers and moderate speeds. Engineered plastic cores cut noise and resist chemicals but are best on smaller brushes where stiffness demands are lower. Whatever the core, balanced drilling, consistent planting depth, and final trimming decide whether your brush runs true. On large ODs or wide faces, dynamic balancing pays back quickly in longer bearing life and better finishes.
Industrial brushes come in multiple shapes—cylinder, strip, cup, wheel, end, flap, belt—each tailored to a different job. Understanding where a Cylinder Brush fits against alternatives helps narrow your options and avoid over‑ or under‑specifying.
A Round Brush, whether it’s a cup, wheel, or end brush, is ideal for spot work—touching a weld bead, cleaning a small cavity, or reaching into corners. It’s usually hand‑held or mounted on a hand tool or small machine. A Cylinder Brush covers a large working face at consistent pressure, which makes it the practical choice for conveyorized processes, belt cleaning, panel dusting, and inline finishing. If you compare round brush vs cylinder brush for a continuous job, the cylinder wins on stability, uniformity, and throughput, while the round brush remains a useful companion for localized touch‑ups.
Belt and roller cleaning are classic Cylinder Brush tasks. A cylinder brush for conveyor cleaning with nylon or mixed nylon/PP filaments lifts crumbs, labels, fibers, and fine powders. A helical pattern discharges debris to a planned side where vacuum or scrapers collect it. In static‑sensitive processes, conductive or anti‑static filaments reduce dust cling and protect components. Segmented designs speed maintenance when one region wears faster, and ESD‑safe blends reduce operational risks in packaging and electronics.
A strip brush can be wrapped around a core to form an externally wound spiral roller. This is a flexible way to set OD, pattern, and density without building a planted core from scratch. Many sanitation modules and street sweepers use strip‑to‑roller construction because it simplifies replacement—swap a worn strip instead of a full drum. For plants that frequently change product families, a strip‑based industrial cylinder brush roller provides a practical path to re‑spec the contact face without re‑machining the core.
Use this table as a quick reference to align filaments with your surface, environment, and outcome. Validate final choices with a small trial in your real process.
| Filament type | Relative stiffness/flex | Typical temperature range | Best for | Pros | Trade‑offs/risks | Suggested pattern(s) |
|---|---|---|---|---|---|---|
| Nylon (PA) | Medium, elastic | Up to ~120°C (short‑term) | General cleaning, dusting, sealing, light finishing | Durable, forgiving, widely available | Moisture absorption can soften stiffness | Straight for polishing; helical for debris flow |
| PBT (polyester) | Medium, stable when wet | Up to ~120°C | Glass/electronics precision cleaning | Low water absorption; consistent pressure | Slightly more brittle than PA in some grades | Short‑trim straight or gentle helical |
| PP (polypropylene) | Medium‑low | Up to ~90°C | Food handling, fruit/veg washing, general sweeping | Economical; chemical and water resistant | Lower heat resistance | Straight for gentle contact |
| Abrasive nylon | Medium‑high (cuts) | Up to ~120°C | Edge radiusing, fine deburring, consistent finishes | Controlled removal without deep scratches | Heat can soften PA base; grit selection matters | Straight/chevron for uniform finishing |
| Stainless wire | High | Up to ~250°C+ | Rust/scale removal, heavy residues in wet conditions | Aggressive; corrosion resistant | Can scratch sensitive surfaces; safety critical | Short‑trim helix to throw debris |
| Carbon steel wire | High | Up to ~200°C | Heavy deburring in dry lines | Very high cutting action | Rusts in wet environments | Short‑trim helix for cooling |
| Brass/bronze wire | Medium | Up to ~200°C | Light oxidation removal; conductive applications | Softer than steel; reduced sparking | Faster wear | Straight or helix depending on duty |
| Natural fibers | Low to medium | Up to ~90°C | Gentle dusting; fruit polishing | Very gentle; holds liquids/compounds | Lower durability; not for aggressive work | Straight; segmented for cooling |
| PEEK/high‑performance | Medium‑high | Up to ~250°C+ | Harsh chemicals; high temperature lines | Excellent chemical/heat resistance | Premium cost | Short‑trim straight or helical |
The simplest way to find your safe window is to fix line speed and slowly bring the brush up from a low RPM while watching three signals: finish quality, temperature near contact, and motor current. As you increase RPM, stop at the point where finish stabilizes and temperature and current remain comfortably within limits. If results are still weak, change the brush—shorter trim, stiffer filament, or a different pattern—rather than forcing pressure.
For cleaning on plastics, coated panels, and glass, keep tip speed modestly above line speed. That creates a wiping action without skidding or overheating. On abrasive jobs, use shorter trims and stiffer filaments to maintain control without excessive pressure. With wire, remember that the filament has less give; a small increase in pressure can create a big jump in cutting force. Always ramp up gradually after installation to confirm that vibration is low and that guards contain debris.
Brush life depends on filament choice, density, trim length, speed, pressure, and debris load. The fastest way to double life is to keep filaments clean and avoid overpressure. Plan quick cleaning steps—vacuum dust, rinse slurry—during changeovers or scheduled pauses. If the contact face becomes uneven, a light trim can restore uniform contact; trim sparingly because shorter trim will stiffen action. Replace the brush when you see finish drift, vibration, or a steady increase in the pressure needed to achieve the same result. A simple log of hours, RPM, line speed, and finish checks makes the next spec far more accurate.
If you see streaks or lines, you’re usually looking at uneven trim, debris packing, or an over‑dense fill. Switching to a helical pattern, adding segmented gaps, or reducing density slightly helps. If you smell resin or feel heat in the part, tip speed and pressure are too high or debris is trapped under the face; step back on speed, reduce pressure, and improve discharge paths. Rapid filament breaks on wire point to buckling from too much pressure or misalignment. Correct the mount, reduce pressure, or shorten trim a bit. When cleaning is weak despite pressure, change the brush—move to abrasive nylon or wire—rather than pushing harder on the wrong tool.
Automation and robotics are expanding into cleaning and finishing. A quiet, smooth Cylinder Brush with a helical fill improves end‑effector accuracy and sensor reliability in cobot cells. ESD‑safe filaments and blends reduce static in packaging and electronics, cutting dust cling and protecting components. Food‑grade requirements are bringing sealed cores, stainless shafts, and hygienic collars to mainstream designs, and sustainability goals are pushing rebuildable cores and segmented brushes that reduce waste. Plants increasingly monitor current draw, finish roughness, and temperature to schedule maintenance before quality drifts—transforming the brush from a consumable into a controlled process tool.
You don’t have to guess your way to a better result. A builder that controls molding, machining, drilling, tufting/threading, trimming, and grinding can translate your parts, speed, and finish goal into an engineered brush with balanced contact and long life. Materials range from PP, PBT, and nylon to abrasive nylon, stainless and carbon steel wire, brass, natural fibers, and high‑performance PEEK; performance options include conductive/anti‑static, wear‑resistant, antibacterial, and high/low‑temperature builds. Core configurations cover shafted rollers and cores that slide over a reusable shaft. Patterns include straight, single‑ or double‑helical, chevron, segmented, and staggered densities to match debris flow and cooling needs.
If you want a head‑start, review current configurations or request a sample and a design review via the product catalog: Industrial Cylinder Brush
Standard builds cover common sizes and materials for woodworking dusting, metal finishing, glass cleaning, conveyor belt cleaning, and sanitation equipment. Customization lets you adjust OD for tip speed, face width for coverage, ID for shaft fit, trim length and density for pressure and clearing, and filaments matched to your surface and temperature. For plants running mixed SKUs, a segmented roller or a strip‑to‑roller assembly provides a fast path to swap only the worn or unsuitable portion without re‑machining a core.
A short trial on your own line beats guesswork. Share your part materials, coatings, line speed, and finish targets. Ask for two trims or two densities on the same filament to test which window stabilizes your finish at the lowest pressure. For metal deburring, test abrasive nylon and wire side by side; many plants settle on wire for first‑pass scale removal and abrasive nylon for final surface quality.
Q1: What is a Cylinder Brush and how do I choose one quickly?
A1: A Cylinder Brush is a rotating roller brush that provides steady, full‑width contact for cleaning, finishing, and deburring. To choose fast, match filament to surface and debris (nylon or PBT for delicate cleaning, abrasive nylon or wire for burrs and scale), pick a pattern that manages debris (helical for discharge, straight for uniform polishing, chevron for wide panels), size OD/face width/trim for your line, and set a safe tip speed and pressure. Validate with a short sample run.
Q2: Industrial Cylinder Brush vs Round Brush—when should I use each?
A2: Use an Industrial Cylinder Brush for continuous processes like conveyor cleaning, panel dusting, or sheet finishing where you need uniform contact and steady pressure. Use a Round Brush (cup, wheel, or end) for spot cleaning, weld bead touch‑ups, small cavities, or tight corners. Many lines use both: cylinder for the main job, round for local corrections.
Q3: When is a Cylinder Wire Brush better than nylon or abrasive nylon?
A3: Choose a Cylinder Wire Brush when you face heavy rust, mill scale, or strong burrs on metal. It cuts fast and tolerates heat, especially in stainless wire for wet lines or carbon steel wire in dry lines. If you need controlled radiusing and a smoother finish, abrasive nylon is better; for delicate surfaces, use nylon or PBT with short trims. Often, a two‑stage approach works best: wire first, abrasive nylon second.
Q4: Straight vs helical vs chevron—how do I pick a pattern?
A4: Pick straight rows for full‑face, uniform polishing or light debris loads. Choose a helical pattern for smoother running at speed and continuous debris discharge to one side, especially in conveyor cleaning. Use chevron on wide sheets to balance side forces and stabilize tracking; it can center or disperse debris depending on V orientation. If debris or heat builds up, segmented fills add cooling and faster maintenance.
Q5: How do OD, face width, and trim length affect performance?
A5: OD and RPM set tip speed, so choose an OD that achieves your target speed in the middle of your motor’s comfort range. Face width should cover the part with a small margin to avoid edge artifacts. Trim length tunes stiffness: shorter trims are more stable and aggressive; longer trims are softer and conform better. Density decides contact points versus particle release. Adjust these factors in small steps and test on your line.
Q6: What speed and pressure are safe for most applications?
A6: For cleaning, aim for a tip speed modestly above line speed to create an effective wipe without overheating. For deburring, pair shorter trims and stiffer filaments with measured, incremental increases in pressure while monitoring finish and temperature. Pressure should flex filaments, not buckle them. If you rely on high pressure to achieve results, switch to a more suitable filament or pattern instead.
Q7: How long does a brush last and how should I clean/maintain it?
A7: Life depends on filament, density, trim, speed, pressure, and debris. Keep filaments free of packed chips or slurry with quick vacuuming or rinsing. Trim lightly to restore a level face when needed, and avoid overpressure that buckles filaments and raises heat. Replace the brush when finish quality drifts, required pressure steadily increases, or vibration rises due to wear or imbalance.
A smart Cylinder Brush specification pays you back in quality and uptime. Start with the right filament for your surface and debris, choose a pattern that manages contact and clearing, and then set size, trim, and density to fit your speed and pressure. Keep tip speed modest for cleaning, shorten trims and stiffen filaments for burrs, and validate on your own line. When results are stable, lock the spec and move on with confidence.
If you want expert support and samples to run side by side, explore the catalog and request a quick design review. You’ll find standard builds and custom options across filaments, patterns, cores, trims, and densities, including configurations for conveyor cleaning, glass finishing, food processing, and metal deburring.
Choosing the right brush turns a variable task into a controlled, measurable process. With the right combination of filament, pattern, and size—and a setup tuned to your line—you’ll see cleaner parts, smoother finishes, less downtime, and a faster path from trial to steady production.
